MedX Plus Sensor

MedX + Intraoral Sensor

Cutting-edge Technology  with Photon-Counting 4th Generation Without scintillator Direct conversion, moisture-resistant,
crashworthy, longer lifespan

Key Features & Highlights

• Optional sensor size meets the clinical
  needs of children and adults

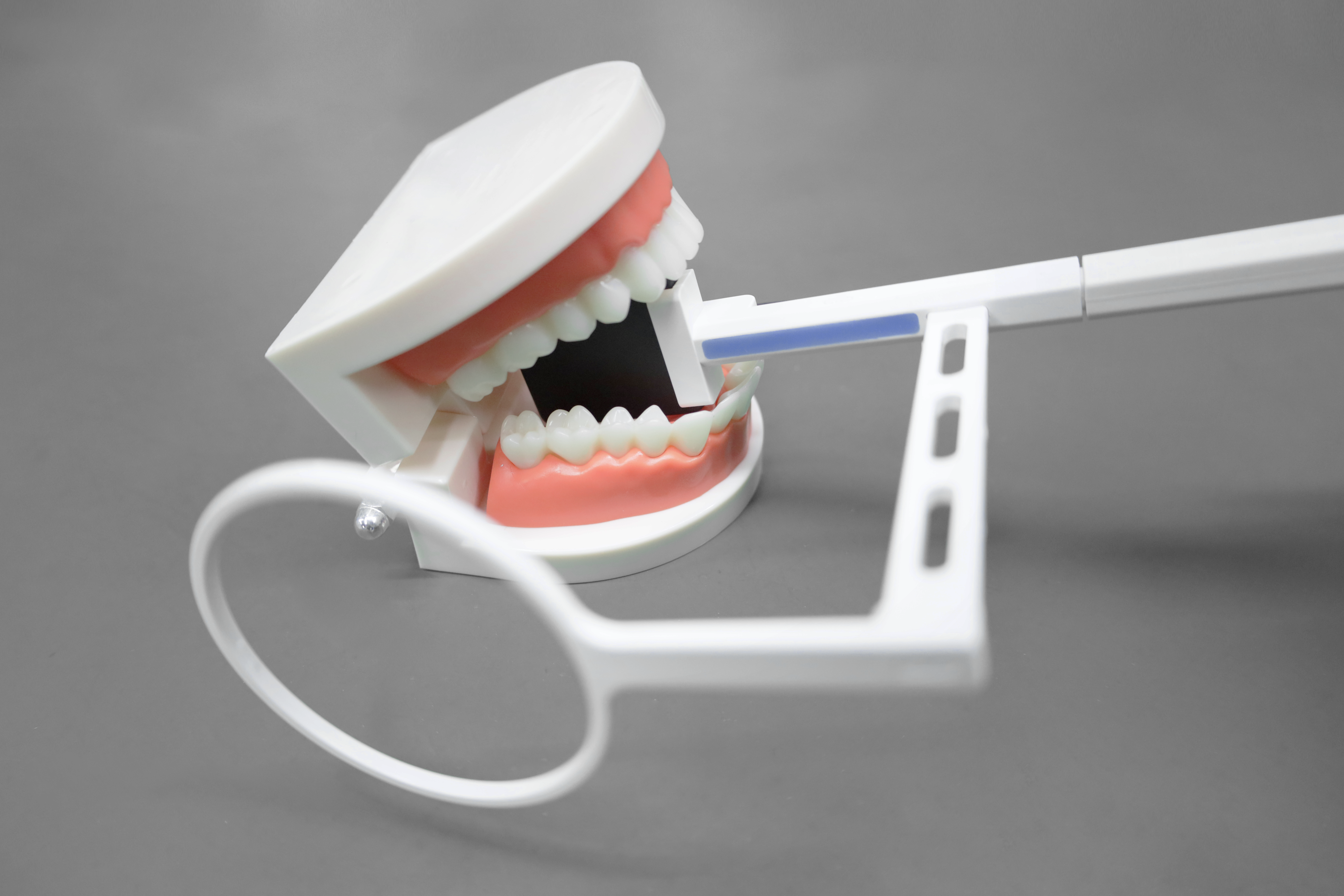

• User friendly positioner for fast and
  accurate positioning
• High compatibility with X-ray units
• Licensed software for free use forever
• More economical and environmentally friendly
• 100,000+ Exposures without loss of imaging quality
• Simple Positioning
• Instant imaging for fast diagnosis
• USB 2.0 connection for sharp images
• 3 seconds for achieving images acquisition

User-friendly Software

• One click installation with no need of IP
  settings
• Digital case management
• Smart contrast for sharper images
• Multiple-format images sharing & remote
  consultation

Product Specifications

• Photon-Counting Chip Without Scintillator Direct Conversion
• Dynamic Range 16bits
• Actual Resolution 12~14lp/mm
• Active Area 25*30mm
• Dimensions 30*37mm
• Thickness 5mm
• Imaging Time 3S
• Image Format BMP/DIR/DCM/JPEG/PNG/TIFF
• Connection USB2.0

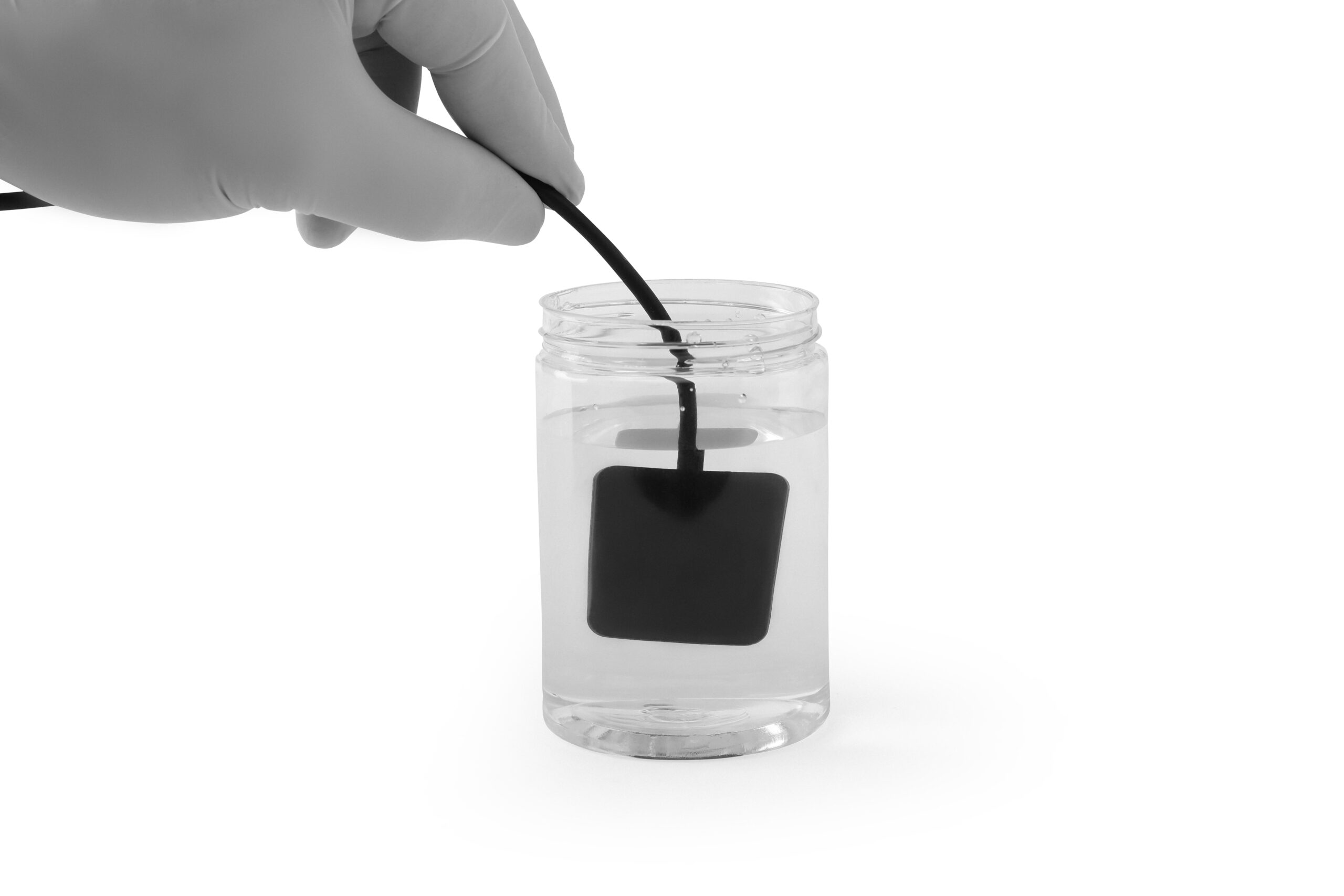

• Waterproof IP67
• Cable Length 3m (Extendable)
• Support System Windows 7,8,10
